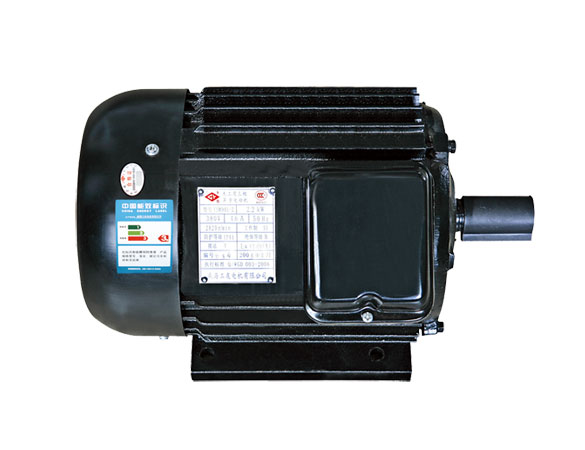

YSM Series Three-phase Asynchronous Motor For Wood-working Machine
YSM Series Three-phase Asynchronous Motor For Wood-working Machine
Summarization:
YSM series motor is full-close rat-cage three-phase asynchronous motor self-cooled by fan. The motor is manufactured for small multifunctional wood working machine. The series motor is of the characteristic of large starting torque, strong ability of over loading, low temperature raise, small vibrancy, low yawp, great reliability, easy maintenance.
YSM series motor is widely used to various wood working machine.


Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt:380V
Rated Frequency:50Hz
Working System:S1
Wiring: Y
Protection Grade:IP44
Insulation Grade:E或B(E OR B)
Cooling Type:IC 411

Technical data

Type Rated power
(KW)
Rated Volt
(V)
Rated current
(V)
Rated speed
(r/min)
Efficient
(%)
Power factor
(cos¢)
Locked current/Rated current Locked-rotor torque/Rated torque Maximal torque/Rated torque Yawp dB(A)
Synchronous speed 3000r/min 2pole
YSM5612 0.09 380 0.32 2800 62 0.68 6.0 2.3 2.4 70
YSM5622 0.12 0.38 2800 67 0.71 6.0 2.3 2.4 70
YSM6312 0.18 0.52 2800 69.5 0.75 6.5 2.3 2.4 70
YSM6322 0.25 0.67 2800 72.5 0.78 6.5 2.3 2.4 70
YSM7112 0.37 0.96 2800 74 0.80 6.5 2.3 2.4 75
YSM7122 0.55 1.35 2800 76 0.82 6.5 2.3 2.4 75
YSM8012 0.75 1.74 2800 77 0.85 6.5 2.2 2.4 75
YSM8022 1.1 2.52 2800 78 0.85 7.0 2.2 2.4 78
YSM90S-2 1.5 3.35 2800 80 0.85 7.0 2.2 2.4 83
YSM90L-2 2.2 4.74 2800 81 0.86 7.0 2.2 2.3 83
YSM100L-2 3 6.31 2800 83 0.87 7.0 2.2 2.3 85
Synchronous speed 1500r/min 4pole
YSM5614 0.06 380 0.28 1400 56 0.58 6.0 2.4 2.4 65
YSM5624 0.09 0.39 1400 58 0.61 6.0 2.4 2.4 65
YSM6314 0.12 0.48 1400 60.5 0.63 6.0 2.4 2.4 65
YSM6324 0.18 0.64 1400 64.5 0.66 6.0 2.4 2.4 65
YSM7114 0.25 0.83 1400 67.5 0.68 6.0 2.4 2.4 65
YSM7124 0.37 0.83 1400 70 0.72 6.0 2.4 2.4 70
YSM8014 0.55 1.51 1400 75 0.74 6.0 2.4 2.4 70
YSM8024 0.75 1.97 1400 76 0.76 6.0 2.4 2.4 70
YSM90S-4 1.1 2.75 1400 78.5 0.79 6.5 2.4 2.4 73
YSM90L-4 1.5 3.61 1400 79.5 0.80 6.5 2.4 2.4 78
YSM100L1-4 2.2 5.16 1400 81.5 0.82 6.5 2.3 2.4 78
YSM100L2-4 3 6.86 1400 83 0.82 6.5 2.3 2.3 83
